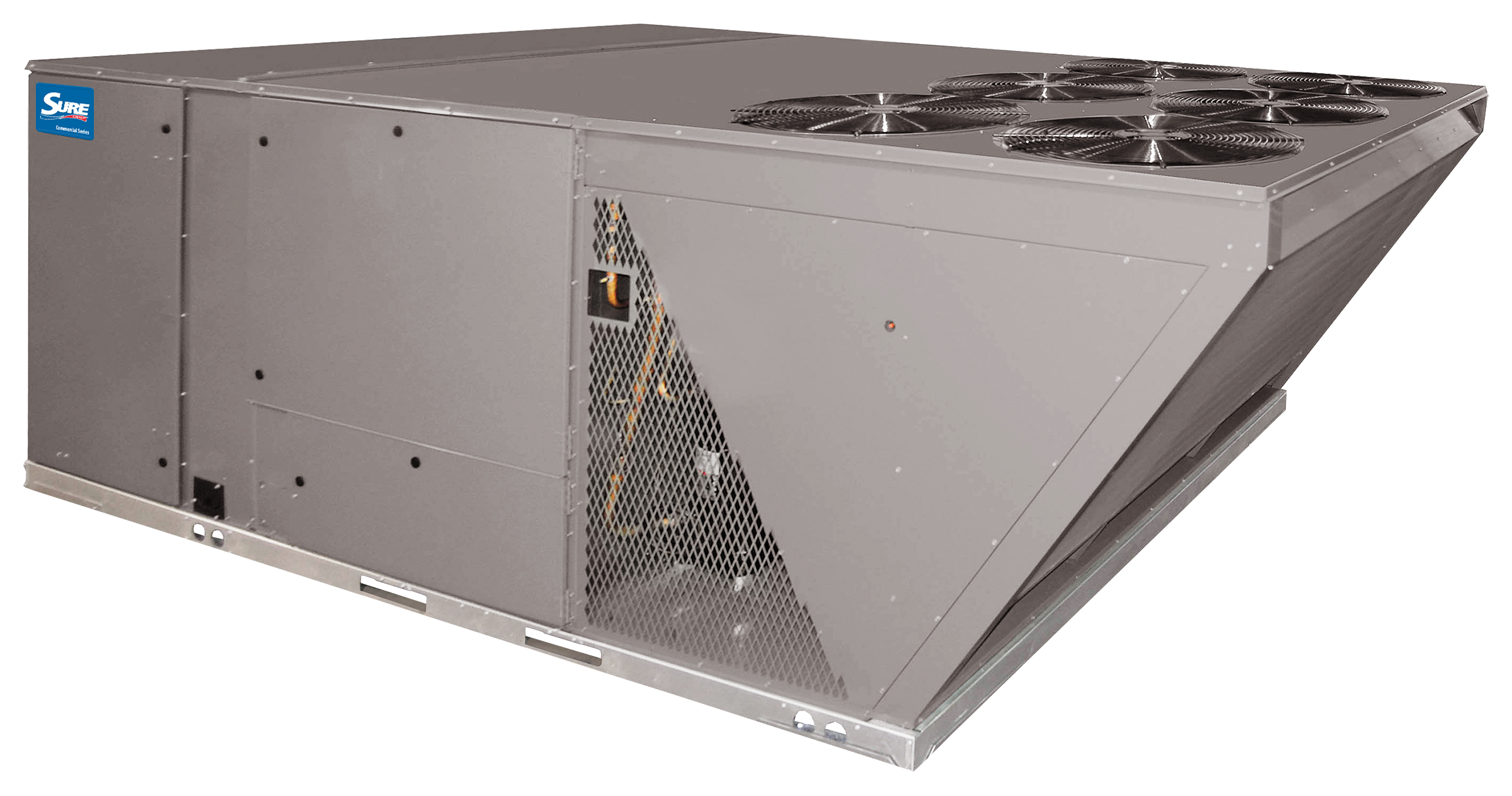

Package Air Conditioners

• R-410A HFC refrigerant.
• Complete factory charged, wired and run tested.
• Scroll compressors with internal line break overload and high-pressure protection.
• Single compressor on 6 Ton model.
• Two compressors on 7.5 - 12.5 Ton model.
• Convertible airflow.
• TXV refrigerant metering system on each circuit (except on 6 Ton).
• High Pressure and Low Pressure/Loss of charge protection standard on all models.
• Solid Core liquid line filter drier on each circuit.
• Single slab, single pass designed evaporator and condenser coils facilitate easy cleaning for maintained high efficiencies.
• Cooling operation up to 125 degree F ambient.
• Foil faced insulation encapsulated throughout entire unit minimizes airborne fibers from the air stream.
• Hinged major access door with heavy-duty gasketing, 1/4 turn latches and door retainers.
• Slide Out Indoor fan assembly for added service convenience.
• Powder Paint Finish meets ASTMB117 steel coated on each side for maximum protection. G90 galvanized.
• One piece base pan with drawn supply and return opening for superior water management.
• Forkable base rails for easy handling and lifting.
• Single point electrical connections.
• Internally sloped slide out condensate pan conforms to ASHRAE 62 standards.
• High performance belt drive motor with variable pitch pulleys and quick adjust belt system.
• Permanently lubricated evaporator and condenser motors.
• Condenser motors are internally protected, totally enclosed with shaft down design.
• 2 inch filter standard with slide out design.
• 24 volt control system with resettable circuit breakers.
• Colored and labeled wiring.
• Copper tube/Aluminum Fin coils (121/2 ton uses MicroChannel condenser).
• Molded compressor plug.
• Supplemental electric heat provides 100% efficient heating.
• Factory Installed Direct Digital Control (DDC) and sensors which can connect to LonWorks™ or BACnet® BAS systems for remote monitoring and control.
• -H Models with Variable Frequency Drives (VFD) meets ASHRAE 90.1-2010 and California Title 24.

• 3 phase DDC models with Scroll^® Compressor
• ClearControl™
• Nominal Size: 15-25 ton
• RLNL-H includes VFD Technology

Documents

• Web Product Image
• Warranty Card
• Specification Sheet

Parts - 1 Year (commercial application)

Compressor - 5 Years (commercial application)
