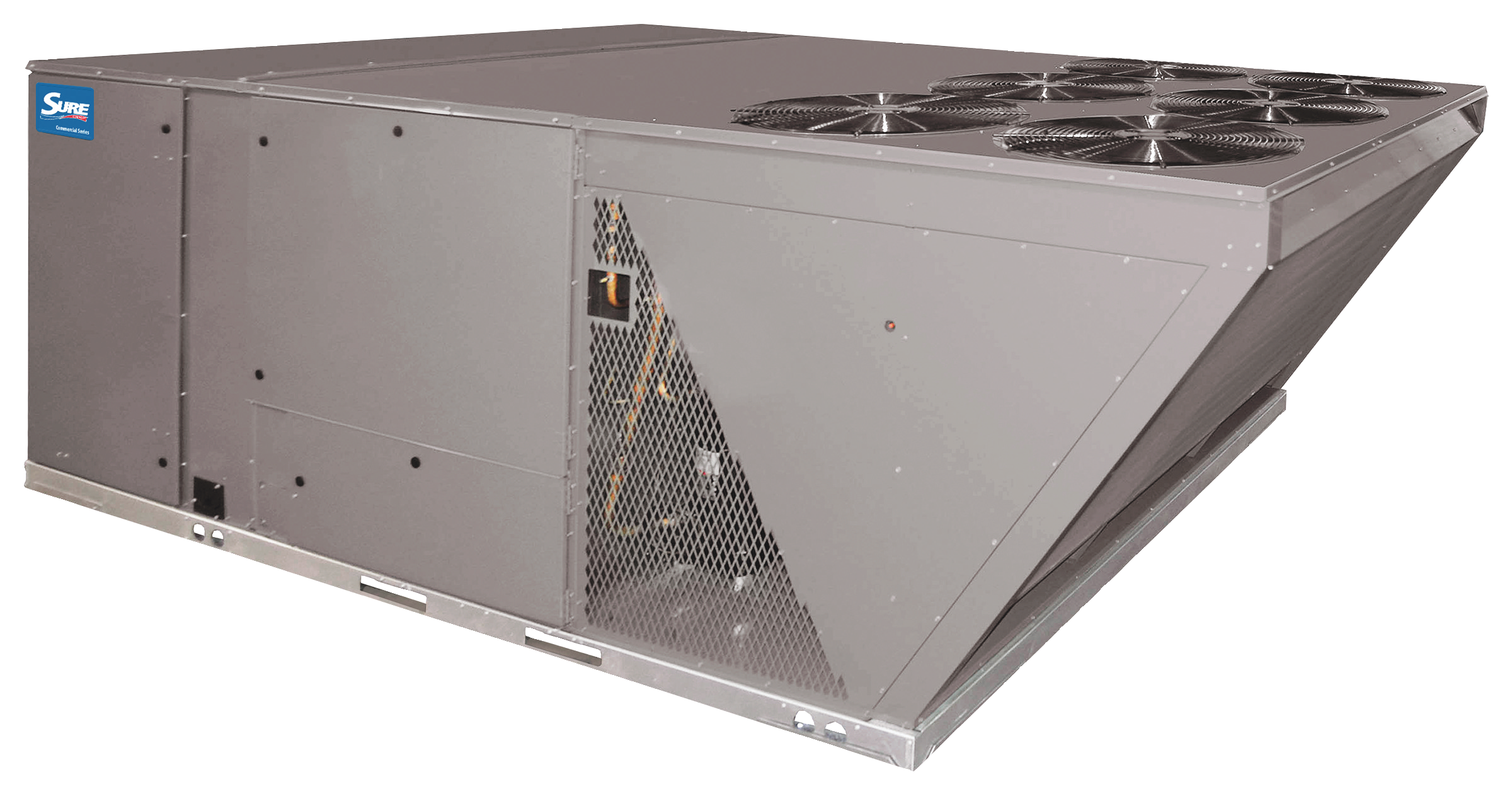

Package Air Conditioners

• R-410A HFC refrigerant.
• Complete factory charged, wired and run tested.
• Scroll compressors with internal line break overload and high-pressure protection.
• Single stage compressor on all models.
• Convertible airflow.
• TXV refrigerant metering system on each circuit.
• High Pressure and Low Pressure/Loss of charge protection standard on all models.
• Solid Core liquid line filter drier on each circuit.
• Single slab, single pass designed evaporator coil facilitates easy cleaning for maintained high efficiencies.
• Cooling operation up to 125 degree F ambient.
• Easily removable filter, blower, electric heat, and control access panels permits prompt service.
• Powder Paint Finish meets ASTMB117 steel coated on each side for maximum protection. G90 galvanized.
• One piece top cover and one piece base pan with drawn supply and return opening for superior water management.
• Externally mounted refrigerant gauge ports for easy service diagnostics.
• Factory or field-installed electric heat kits available up to 24 kW.
• Easy to install plug-in; slip in, 100% fully modulating economizer.
• Forkable base rails for easy handling and lifting.
• Single point electrical connections.
• High performance belt drive motor with variable pitch pulleys and quick adjust belt system.
• Permanently lubricated evaporator, condenser motors.
• Condenser motors are internally protected, totally enclosed with shaft down design.
• 1 inch filter standard with slide out design.
• Colored and labeled wiring.
• Copper tube/Aluminum Fin coils.
• Molded compressor plug.
• Factory Installed ClearControl™, a Direct Digital Control (DDC) and sensors which can connect to LonWorks™ or BACnet® BAS systems for remote monitoring and control.
• Factory Installed HumidiDry™ Dehumidification System (Refrigerant Reheat).

• 3 phase DDC models with Scroll® Compressor
• HumidiDry™and VFD Technology
• Nominal Size: 15-25 ton

Documents

• Specification Sheet
• Warranty Card
• Web Product Image

Parts - 1 Years (commercial applications)

Compressor - 5 Years (commercial applications)
